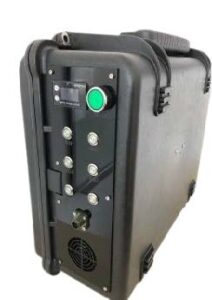

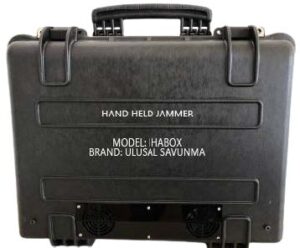

HAND HELD JAMMER
| SPECIFICATIONS | ||||
|---|---|---|---|---|
|
Directional Coverage Range |
1000 m |
|||
|
Angle of Coverage for Vertical and Horizontal |
30-45 Degree. |
|||
|
Jammer Technology |
Jammer Technology Directional |
|||
|
Jammer Power |
Jammer Power (per module and total power) 110W (GNSS- 30W, 2.4 –30W, 5.8 -30W,433-10W,915- 10W) |
|||
|
Number of Directional Antenna |
5 Number of Directional Antenna |
|||
|
Detection Capability |
GNSS bands: GPS, GLONAS, Galilieo, BeiDou. |
|||
|
Antenna Gain of each Band |
Between 30-42 DBm |
|||
|
GNSS Spoofing |
Incorporate GNSS Spoofing |
|||
|
Mod of Operation |
Individual or All bands selection |
|||
|
Built in test |
Available |
|||
|
Parameter to be displayed |
Switch and button. |
|||
|
Ingress Protection |
IP65 |
|||
|
Battery |
24V, 15A Li-Ion battery (Changeable & rechargeable) |
|||
|
Standby Battery Time |
48 hours |
|||
|
Jamming Time |
Minimum 1 hour |
|||
|
External power |
External DC power for continuous operation |
|||
|
Weight |
9kg |
|||
|
Tripod |
Available |
|||
|
Dimensions |
L:480mm x H:370mm x W:150mm |
|||

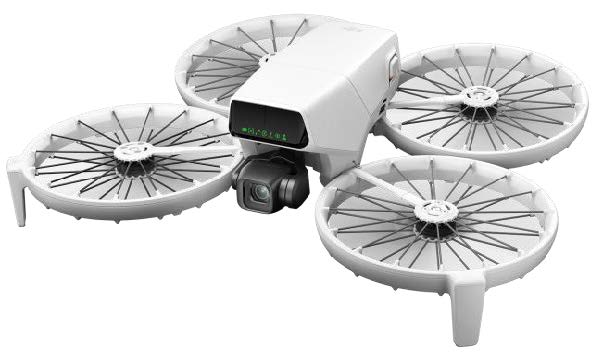

Neutralize any incoming UAV within equipment range |
The jammer integrated with radio detection which enable to operate to detect UAV’s and determine the UAV radio signal by drone detection device DR400-A. |
The jammer can jam any commercial satelite navigation frequencies, across all (GPS, GLONAS, Galileo, BeiDou, etc) satelite constellations (GNSS). The Jammer can jam UAV radio bands as well as GNSS bands. |

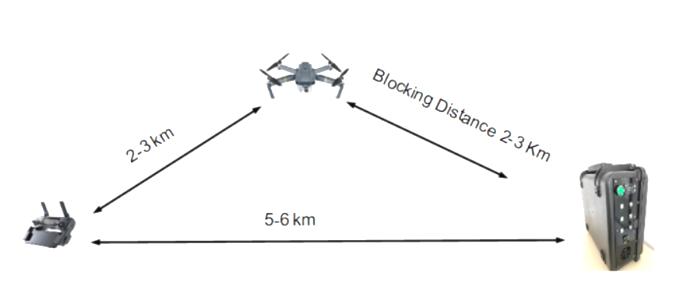

Disrupts C2 link of controlling UAVs to descend or return to origin. |
Compact and Lightweight |
Easy to operate |
The Jammer field programmable with integrated by embedded software. |
